CryoMag 磁传感器是两部分结构，操作温度室温到 2-4K, 是用于低温超导射频腔、量子计算以及其它低温环境和应用的理想选择。

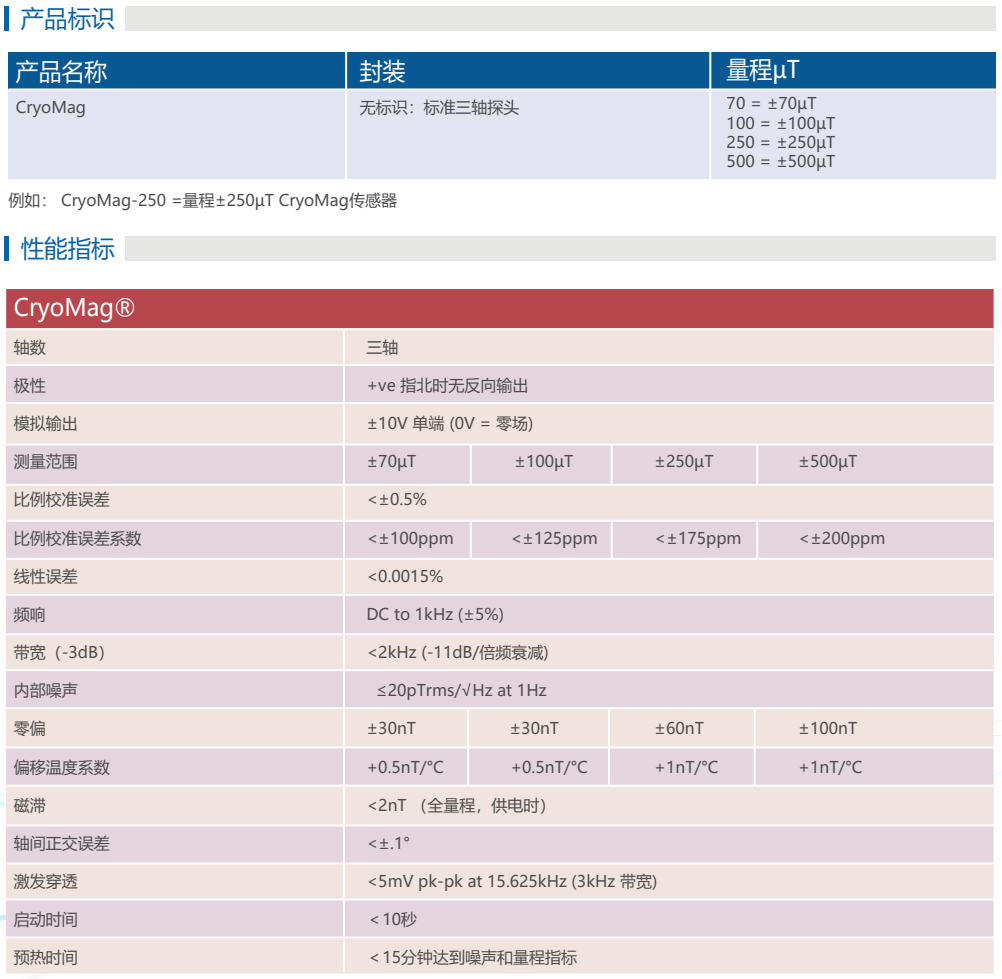

特征：
- 操作温度低至 2k
- 噪声低至 <20pTrms/√Hz at 1Hz
- 量程从 ±70,±100, ±250 and ±500µT
- 频率响应 DC-1kHz
| Mechanical | ||
| Package options | Two Part | |
| Probe enclosure material | PEEK GF30 | |
| Probe harness | Beryllium copper | |
| Dimensions | 3-axis probe | TBC |
| Single-axis probe | TBC | |
| Electronics enclosure | TBC | |
| Weight | <250g target | |
| Connectors | Fisher AL-1731-DEU1031-A010-SR-11-11-G-12 | |
| Jigging Requirements – Customer | TBC | |
| Jigging Requirements – Bartington | Helmholtz Jig/Adaptor | |
| Interconnect cable | Mag-13MS/MC Cable |

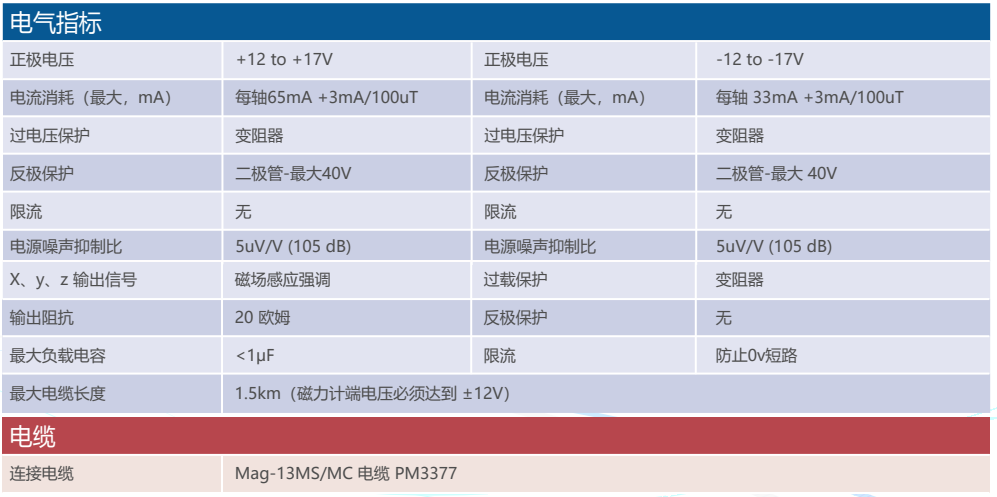

| Electrical | |
| Positive supply voltage (range) | ±12 to ±17V |
| Current drawn (max. mA) | 65mA +1.4mA/100uT on each axis |
| Over-voltage protection | Varistor |
| Reverse polarity protection | Diode – 40V max |
| Current limit | None |
| Power Supply Noise Rejection Ratio | 5uV/V (105 dB) |
| Negative supply supply voltage (range) | -12 to 17V |
| Current drawn (max. mA) | 33mA +1.4mA/100uT on each axis |
| Over-voltage protection | Varistor |
| Reverse polarity protection | Diode – 40V max |
| Current limit | None |
| Power Supply Noise Rejection Ratio | 5uV/V (105 dB) |
| Output Signals X, Y and Z axes | Magnetic field strength |
| Output Impedance | 10 ohms typical |
| Maximum load capacitance (CLOAD) | >1µF |
| Maximum cable length | 1.5km (but supply must be adequate to achieve ±12V at Magnetometer) |
| Over-voltage protection | Varistor |
| Reverse polarity protection | None |
| Current limit | Protected against short circuit to 0V |
低温恒温器及其它低温环境磁场监测
主动消磁系统反馈探头
