提供多种封装版本。±12V 供电，三分量模拟电压输出，在 0 至 ±10V 范围内与 Bx, By 和 Bz 成比例。
广泛应用于物理、生物电磁、地球物理勘查和国防等领域。

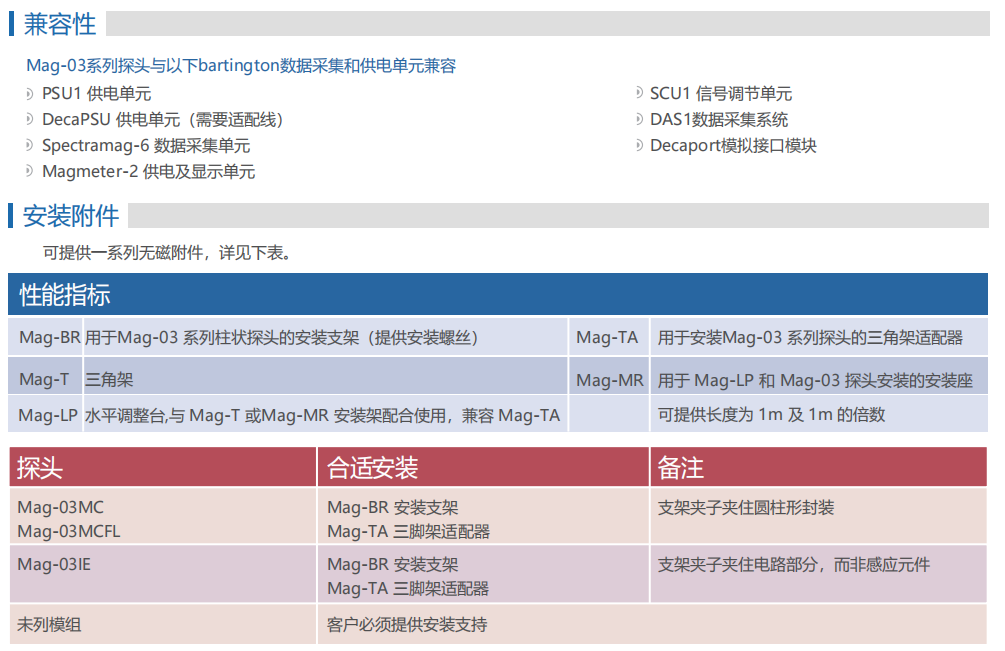

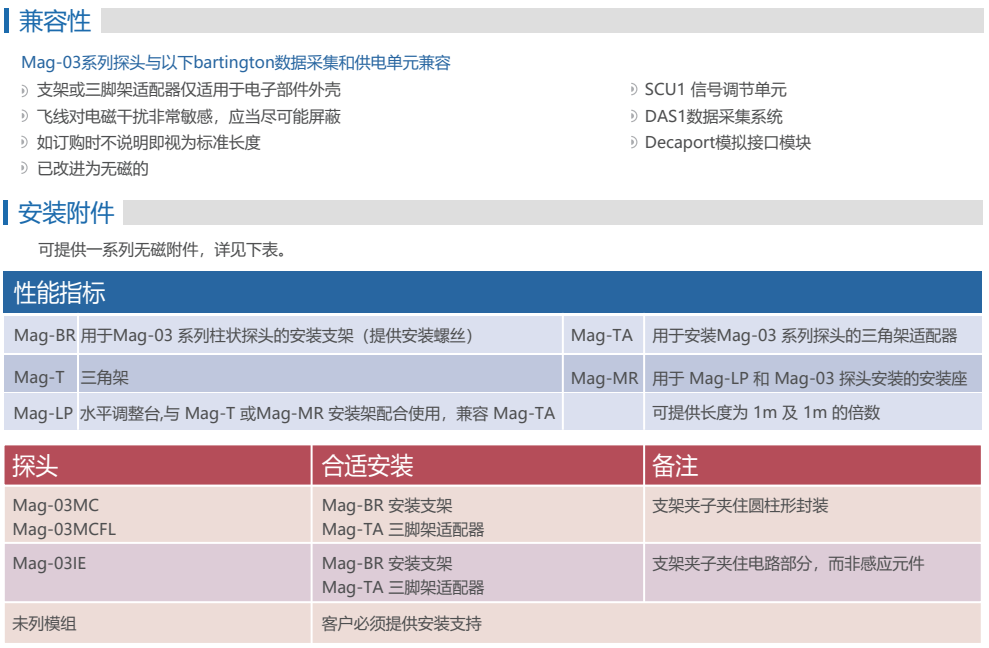

Bartington 可提供系列电源和数据采集单元。

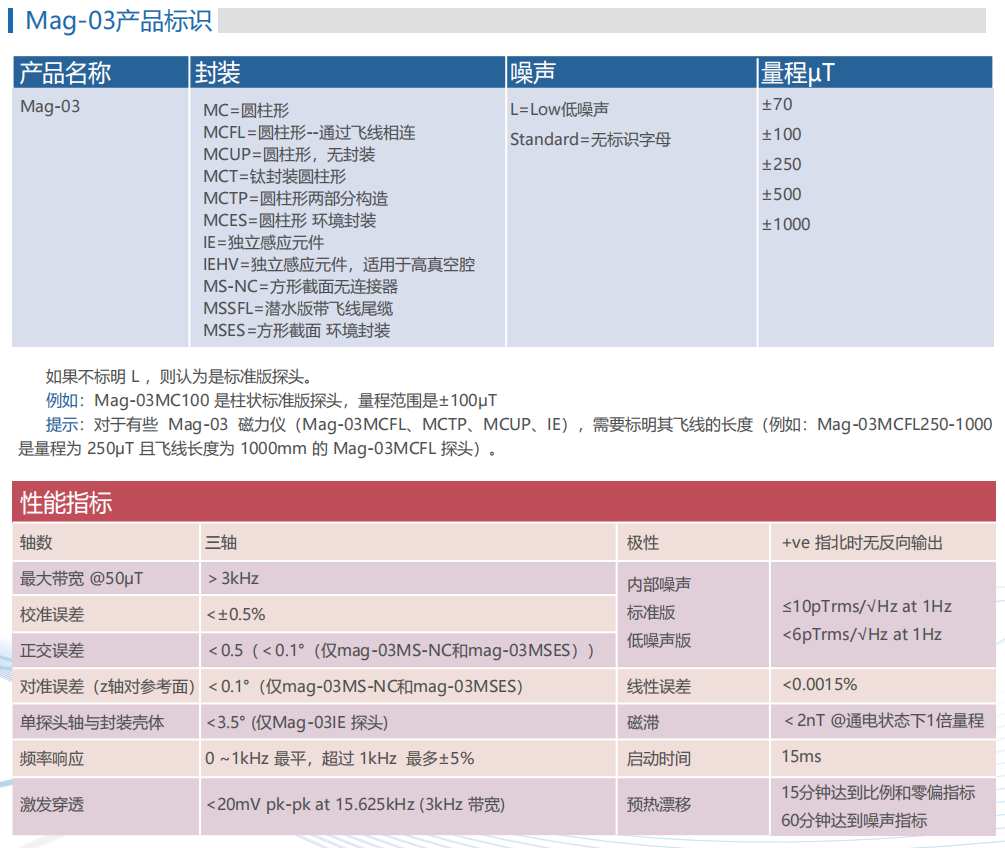

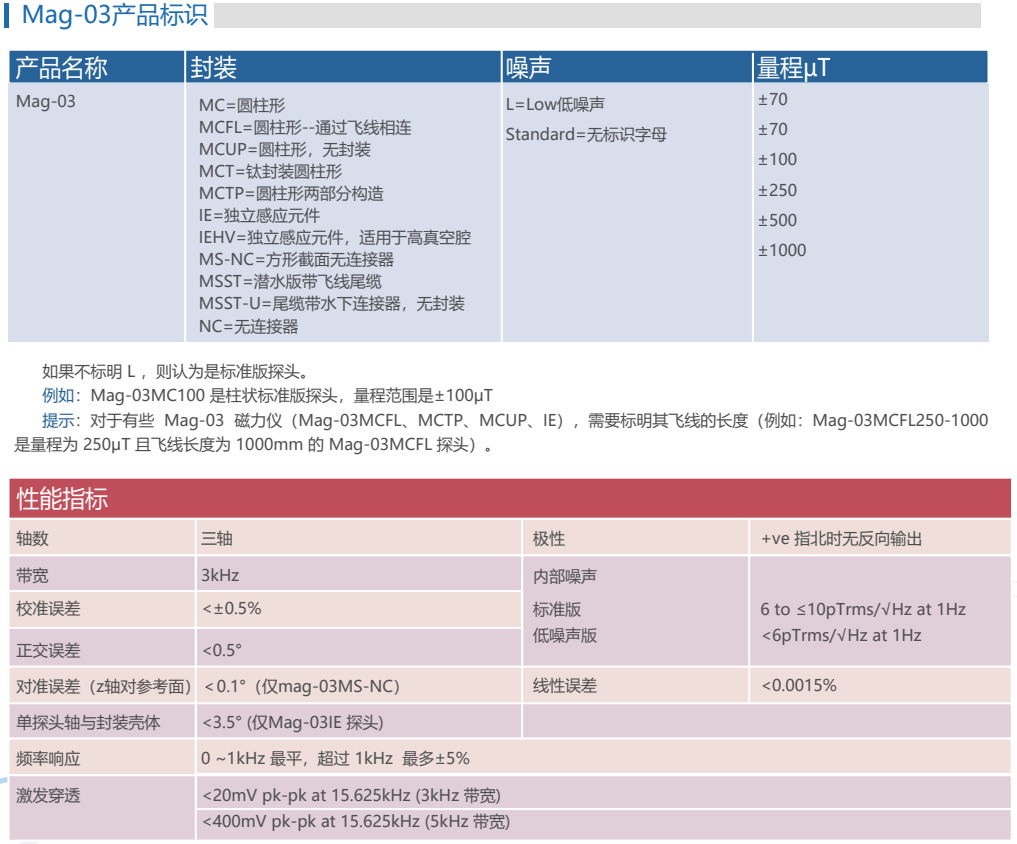

产品特征：
多种选择的封装类型：圆柱形、方形截面、无封装、两部分
噪声低至 <6pTrms/√Hz at 1Hz
量程从 ±70μT 到 ±1000μT
带宽典型为 3kHz
应用领域：
- 测量地磁扰动
- 作主为动磁屏蔽系统的反馈探头
- 核磁共振和电镜安装现场的前期环境调查
- 电磁调查
- 航磁调查
- 磁信标测量
彩页下载
- 00 mag-03三轴磁通门传感器彩页 下载
- 01 操作手册 下载

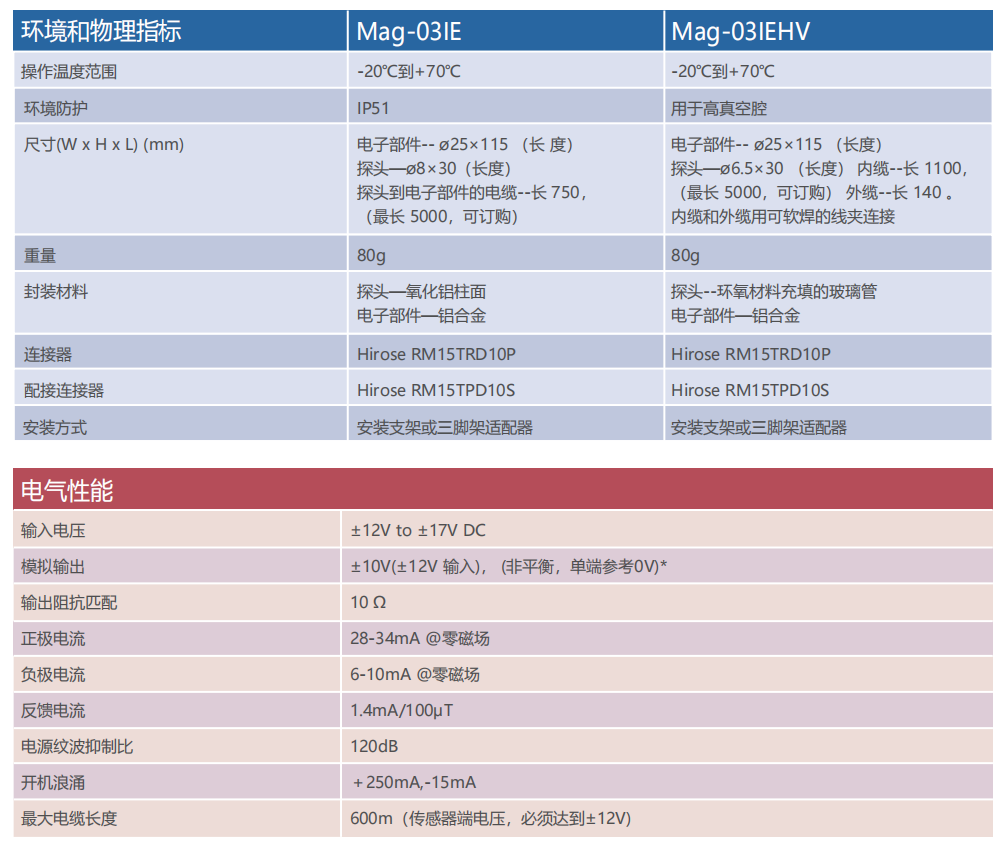

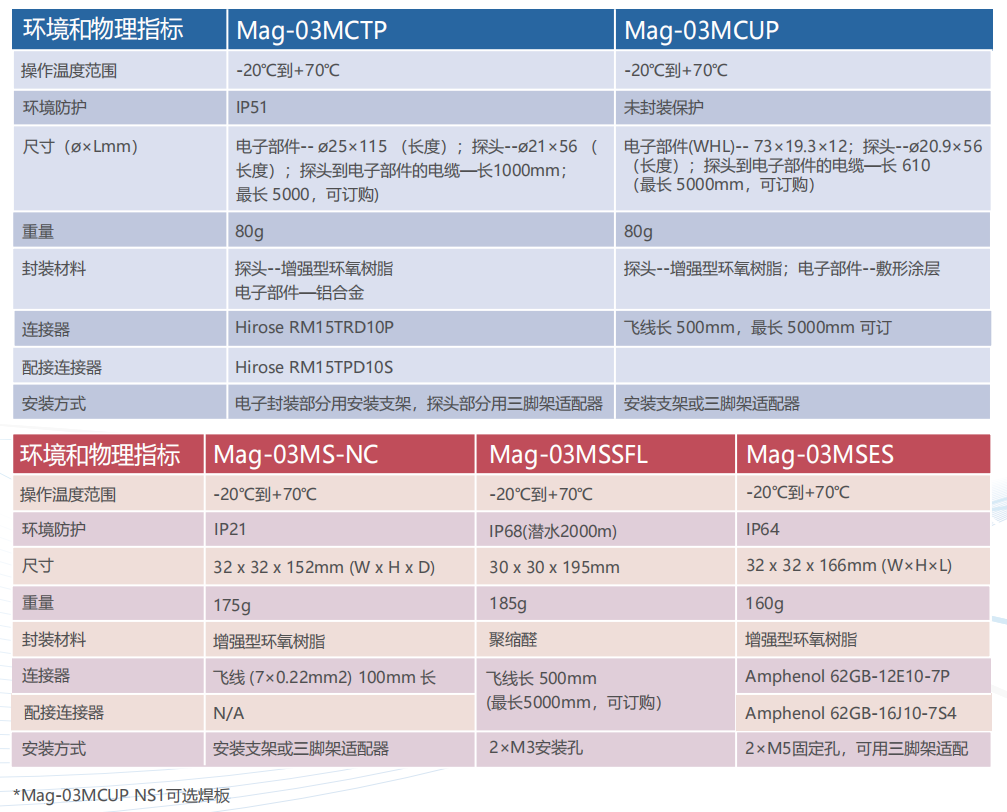

规格图
- 00 Mag-03IE 下载
- 01 Mag-03MCTP 下载
- 02 Mag-03IEHV 下载
- 03 Mag-03MCUP 下载

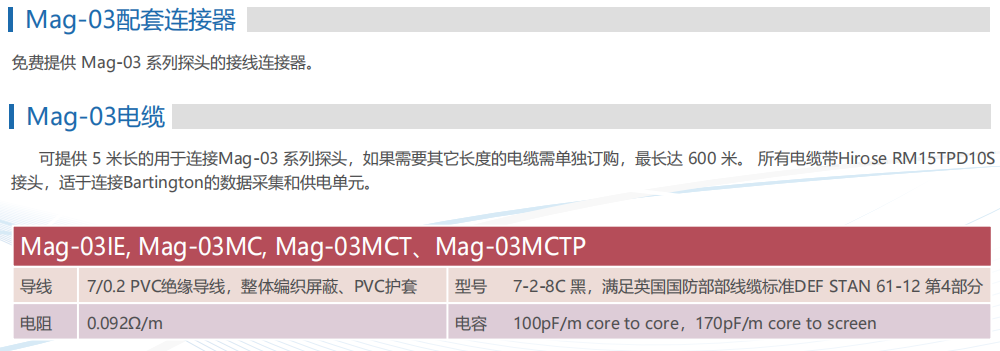

- 04 Mag-03MC cable 下载
Fluxgate three-component magnetometers for cost-effective ground, UAV and airborne magnetic surveys for industrial and academic geoscience applications and comparison with current industrial standards through case studies
https://www.sciencedirect.com/science/article/abs/pii/S2352380818300182?via%3Dihub
Magnetorelaxometry of magnetic nanoparticles with fluxgate magnetometers for the analysis of biological targets
https://www.sciencedirect.com/science/article/abs/pii/S0304885305002076
Simulation and measurement of ferromagnetic impurities in non-magnetic aeroengine turbine disks using fluxgate magnetometers
https://www.sciencedirect.com/science/article/pii/S2214657115000179
Magnetic mapping for the detection and characterization of UXO: Use of multi-sensor fluxgate 3-axis magnetometers and methods of interpretation
https://www.sciencedirect.com/science/article/pii/S0926985106000929
https://www.sciencedirect.com/science/article/pii/S0168169920311480
Aerial magnetic mapping with an unmanned aerial vehicle and a fluxgate magnetometer: a new method for rapid mapping and upscaling from the field to regional scale
https://onlinelibrary.wiley.com/doi/full/10.1111/1365-2478.12991
Anthropogenic electromagnetic fields (EMF) influence the behaviour of bottom-dwelling marine species https://www.nature.com/articles/s41598-020-60793-x
